Drainage mat geocomposite for drainage and filtration

  • Multifunctional protection and drainage system
  • Three-dimensional seepage bodies
  • No overlapping installation
  • Both sides with a filter fleece
  • Easy cutting with a carpet knife
Title
7,99 €
Tax included Shipping calculated at checkout.

💶 ab 1000 EUR Bestellwert -2% und ab 3000 EUR Bestellwert -3%

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
SKU: 3ddrain

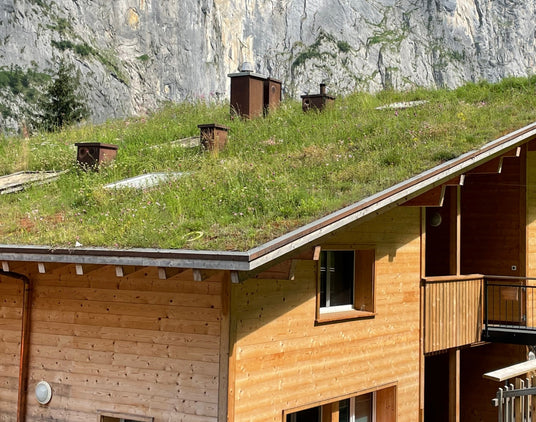

The complete package for your green roof

Our complete green roof package combines sustainable materials with innovative technology to not only enhance the roof's appearance , but also contribute to environmental protection . Green roofs offer additional protection for the roof waterproofing , help improve the microclimate and promote biodiversity .

The prerequisite is that the building structure is suitable for the additional load of the green roof . The load is up to 120 kg/m² when saturated with water . The components are suitable for a roof pitch of 0° to 5° .

Individual green roofs

The individual complete package extends the life of your roof by protecting it from temperature fluctuations and UV radiation. The components are suitable for various roof types and are ideal for anyone who values ​​quality, sustainability and aesthetics .

Installing a green roof is straightforward and can even be done by laypeople . The components are low-maintenance and durable , so your roof will remain an eye-catcher all year round with minimal effort. As a notable side effect, you will increase the value of your property .

Technical data

Technical data:

Geocomposite:
Thickness at 2 kPa load:20mm
Tensile strength MD:11.0 kN/m
Elongation at max. load:35%
Punch penetration force:1.5 kN
Water drainage capacity at 20 kPa, hard/soft:2.50·10-3 m²/s
Assumed minimum useful life in years in soils with a pH value of 4 < pH < 9 and a soil temperature of < 25°C:≥ 50
Maximum exposure time until coverage:2 weeks


Filter fleece:
Dynamic breakdown test:45mm
Punch penetration force:0.75kN
Water permeability perpendicular to the plane:100 mm/s

Innovation meets sustainability: the shift model

The complete set contains all the components you need to install the green roof. You can put the package together according to your individual needs .

You can choose from the following components:

  • root protection membrane, e.g. EPDM roofing foil
  • Premium separation, protection and storage fleece 300 g/m²
  • Drainage and water storage element HDPE NB 20 - 150 including filter fleece
  • lightweight substrate in 25 LTR bags
  • inspection chamber made of metal or plastic

A full-surface root protection membrane is laid on the substrate, e.g. wood, concrete or bitumen. Our EPDM roofing membranes are ideal for this, as they are considered “ root-proof ” according to the Research Association for Landscape Development and Landscape Construction (FLL). This is followed by our high-quality separating, protective and storage fleece .

The most important layer is the drainage layer , which stores rainwater and drains excess water away. Our water-storing drainage sheet - the HDPE NB 20 - 150 - offers an ideal solution for this. Since this also has a filter function, our lightweight substrate can be applied directly, which saves an additional work step.

Optionally, you can integrate an inspection shaft for checking or maintaining the roof drains. This is recommended if your roof drain is located in the roof area. We offer you a choice of two variants: metal and plastic. Finally, you can plant and maintain your green roof with perennials or sedum shoots as you wish.
